Digital Corrugated Printing Press

Enables you to profitably develop short and medium run market opportunities

The new business model for corrugated box printing

The Domino X630i is a single-pass digital press that prints up to 75m/m (246ft/min) or 4,500 sheets per hour*, with 600x600dpi print resolution and a maximum sheet size of 1,600 x 3,000mm** It includes a servo-controlled leading-edge bottom feeder for continuous feed operation, cleaning, inspection, unique vacuum sheet transport, drying with either bundler and stacking output options.

The X630i is based on Domino’s proven Generation 6 inkjet platform, now approaching 1,000 industrial inkjet installations. With over 40 years of inkjet development experience, the X630i includes unique Domino intelligent Technology or i-Tech components, combining to create a system altogether more flexible and reliable. i-Tech CleanCap is an automated inkjet cleaning and capping solution for reduced maintenance. i-Tech ActiFlow provides continuous ink recirculation, for more consistent print results. i-Tech StitchLink achieves precise print head alignment to deliver the highest quality print results.

The most versatile Domino AQ95 aqueous ink set, including i-Tech PolyM with unique polymeric particles, combines the ability to reliably print on to coated and uncoated corrugated stock, but without the need of a primer or separate bonding agent, while at the same time, still providing food packaging compliance.

*900mm x 1,500mm (36” x 60”) sheet size
** maximum image size is 3,000mm x 1,345mm (118”x53”)

A Domino operator using the x630i Digital Corrugated Printing Press

Domino X630i - Corrugated Printing Press

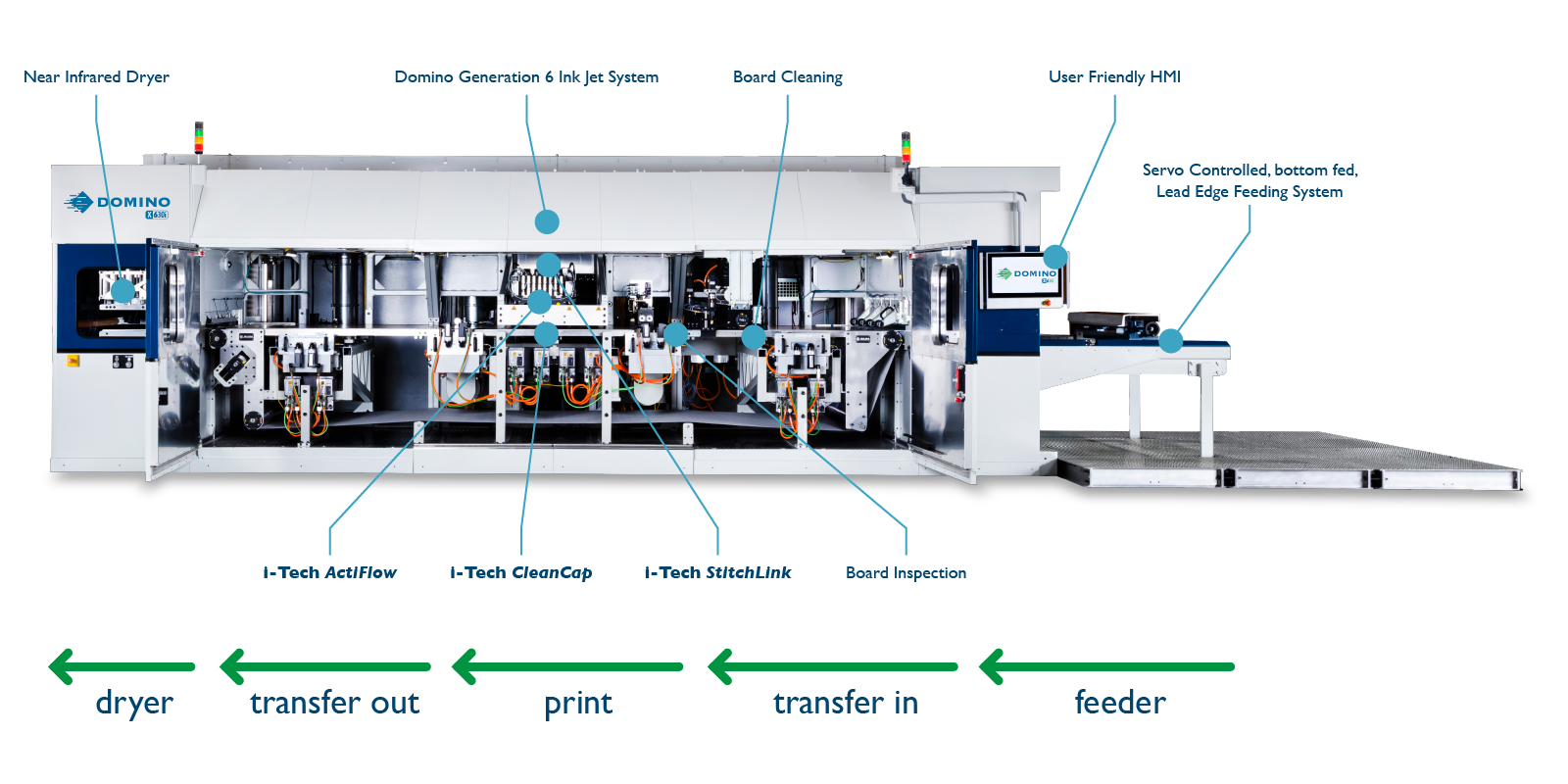

The Domino X630i corrugated digital ink jet press

i-Tech ActiFlow

Innovative ink circulating system delivers consistent print colour and superior reliability

i-Tech CleanCap

Revolutionary automated print head cleaning and capping station maintains constant reliable print nozzle performance, reduced start-up time and less operator intervention.

i-Tech StitchLink

Micro motor controller technology ensures that all heads are positioned precisely, calibrated to print as one, enabling seamless print across the full sheet width.

Domino AQ95 CMYK ink set

Suitable for many non-direct food packaging applications. All materials used are listed on the Swiss Ordinance for Food Packaging Inks. It has been developed in line with Nestlé’s guidance on food packaging inks and is fully compliant with the EuPIA exclusion policy.

i-Tech PolyM

Unique micro polymeric particles within the AQ95 inks allow reliable printing onto coated substrates without the need for separate primer or bonding agents.
