Domino | Ax-Series | High Speed Continuous Inkjet (CIJ) Printer

Feature comparison	Ax130i Continuous Inkjet (CIJ) Printing - 'Value Without Compromise'	Ax150i Batch printing machine with maximum printing flexibility	Ax350i Inkjet printer for high speed coding	Ax550i Robust industrial inkjet printer for harsh factory environments
Non-Contact Printing Technology
Text, Barcodes & Graphic coding	Text and graphics only
Service Free
Available Ink choices	3	26	47	47
Maximum print speed	5.1m/s	5.1m/s	7.2m/s	7.2m/s
Printhead types	i-Pulse 2 printhead	i-Pulse standard printhead	i-Pulse printhead variants: standard, right angled, RS, DUO	i-Pulse printhead variants: standard, right angled, RS, DUO
Nozzle Sizes	60µ	60µ	40µ, 50µ, 60µ and 75µ options	40µ, 50µ, 60µ and 75µ options
User interface	Integrated 7inch TouchScreen	Integrated 7inch Touchscreen	Moveable 7 or 10.4inch with mounting options	Detachable 7 or 10.4inch with mounting options
Software	QuickStep 3	QuickStep 3	QuickStep 3	QuickStep 3
Cabinet Materials	IP54 cabinet	IP55 Cabinet	Stainless Steel Cabinet with IP66 electronic enclosure	Marine grade Stainless Steel Cabinet with IP66 electronic enclosure
Size	37.3cm (H) 40.0cm (W) 39.3cm (D)	37.3cm (H) 40.0cm (W) 39.3cm (D)	41.0cm (H) 43.0cm (W) 38.0cm (D)	41.0cm (H) 43.0cm (W) 38.0cm (D)
Performance Packs
Domino Cloud ready
	View	View	View	View

Sorry, our comparison tool isn't available on small screens. However, you can use the links below to see each of the products.

Continuous Inkjet (CIJ) Printing - 'Value Without Compromise'

>

Batch printing machine with maximum printing flexibility

>

Inkjet printer for high speed coding

>

Robust industrial inkjet printer for harsh factory environments

>

Why choose Domino Ax-Series Continuous Inkjet (CIJ) Printer?

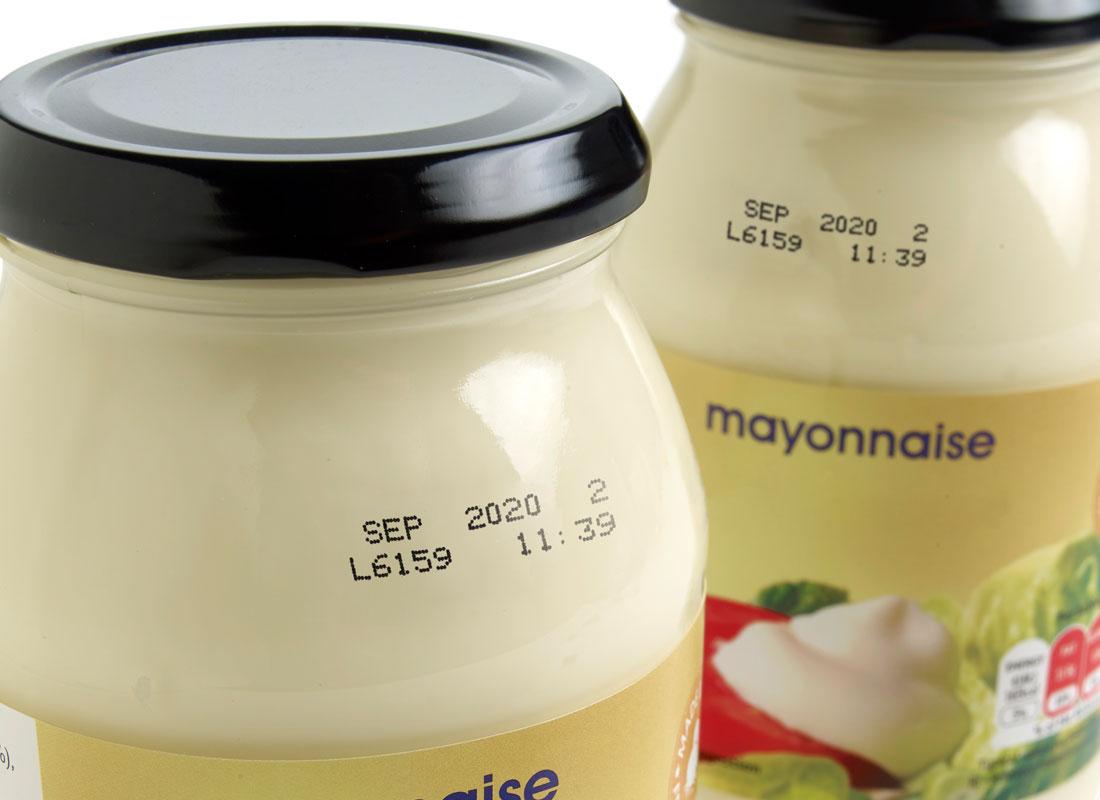

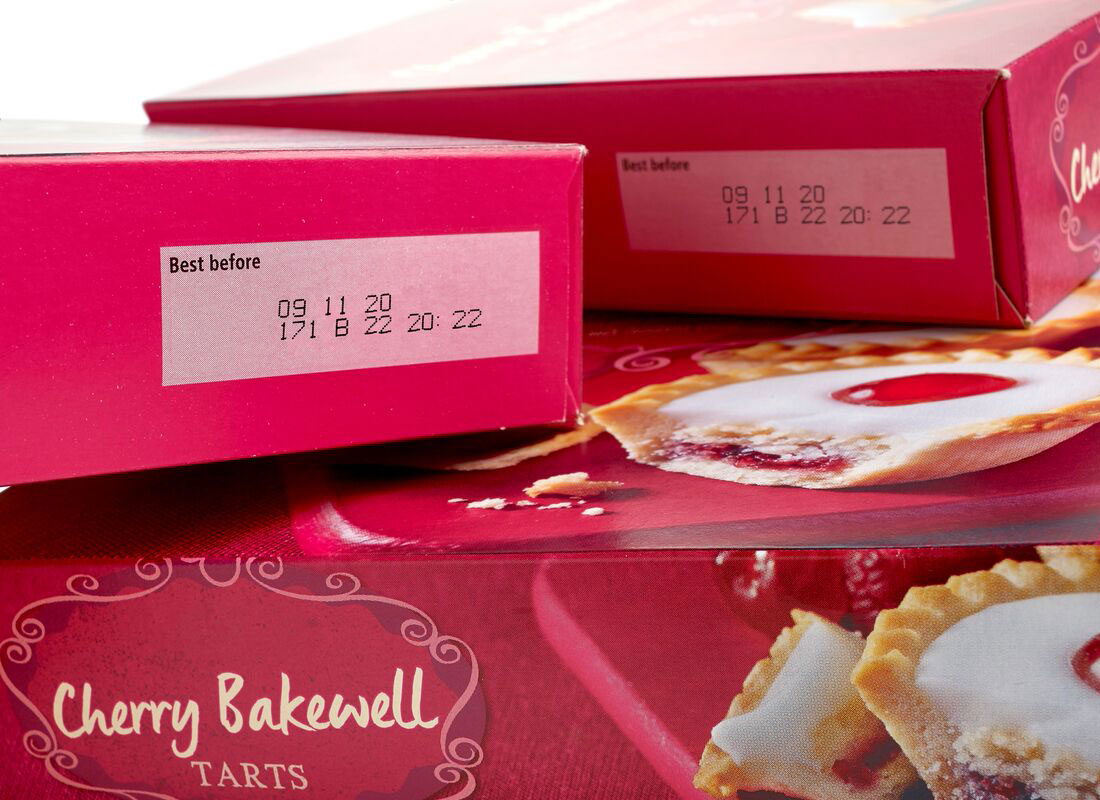

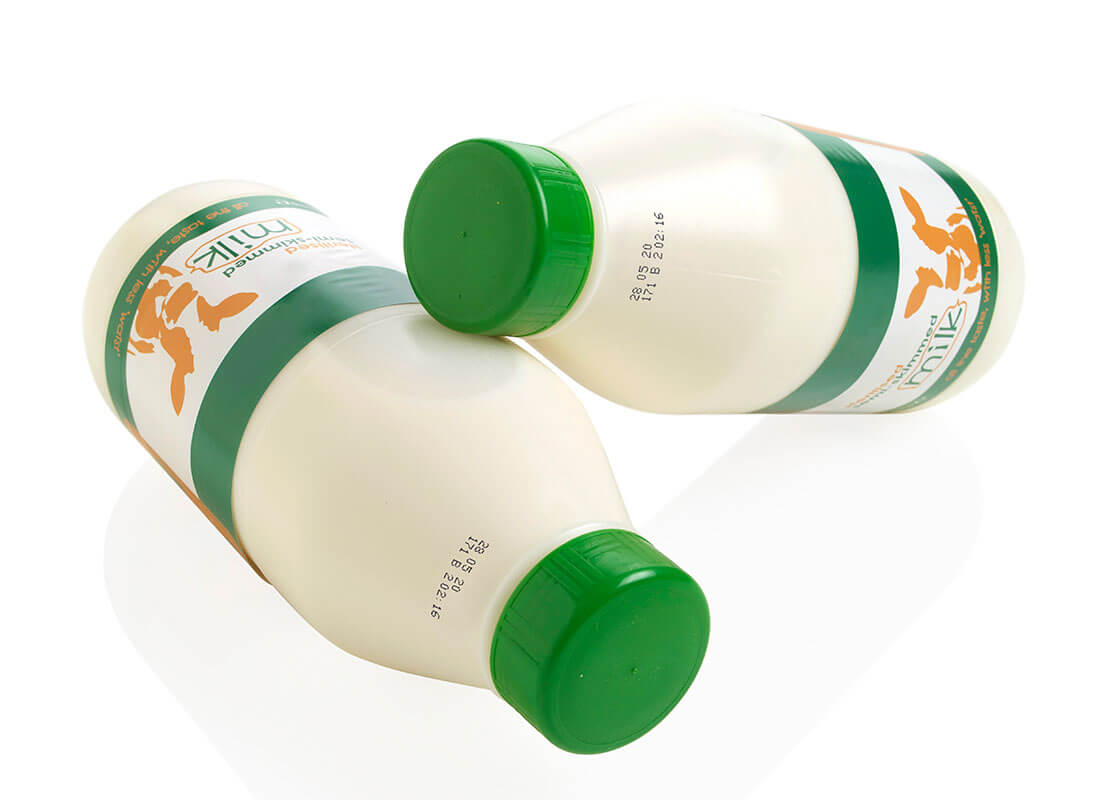

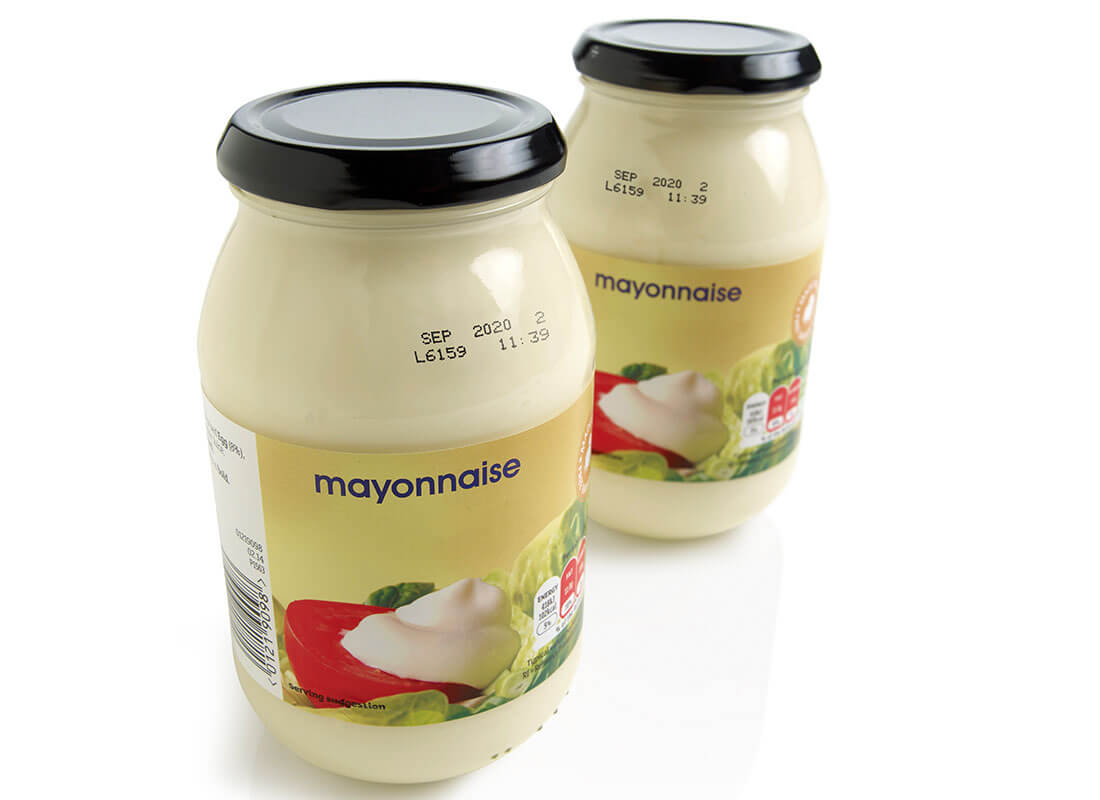

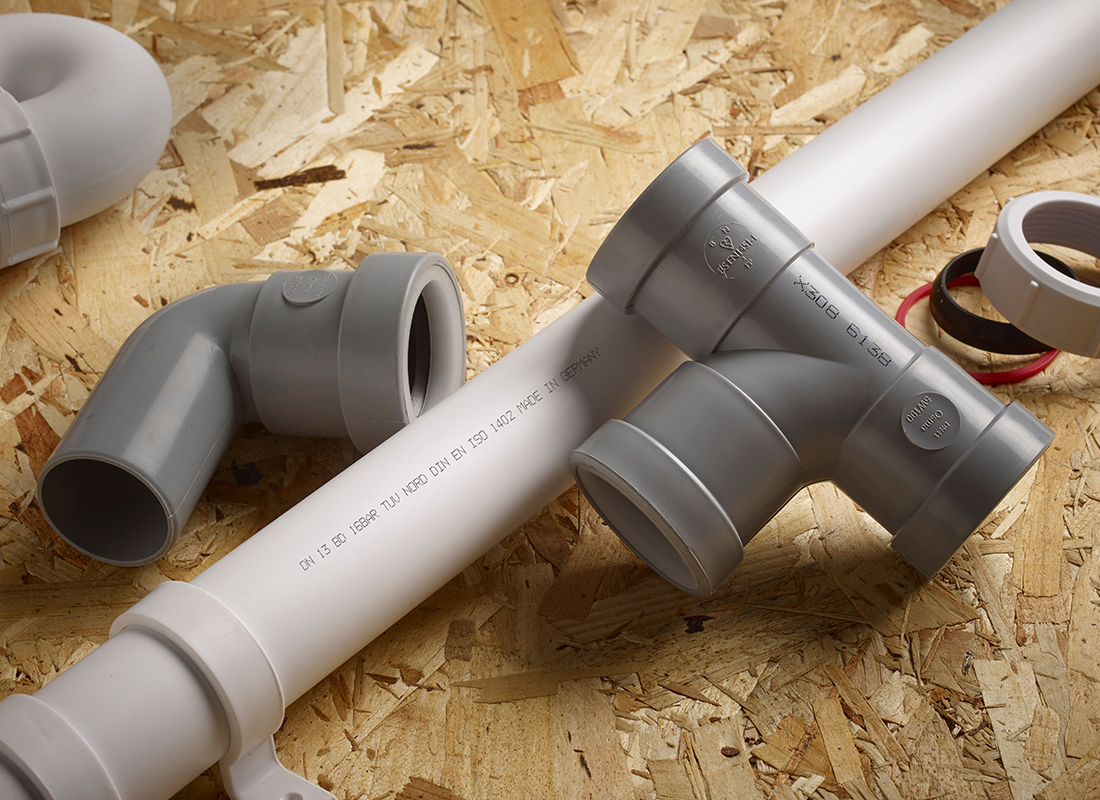

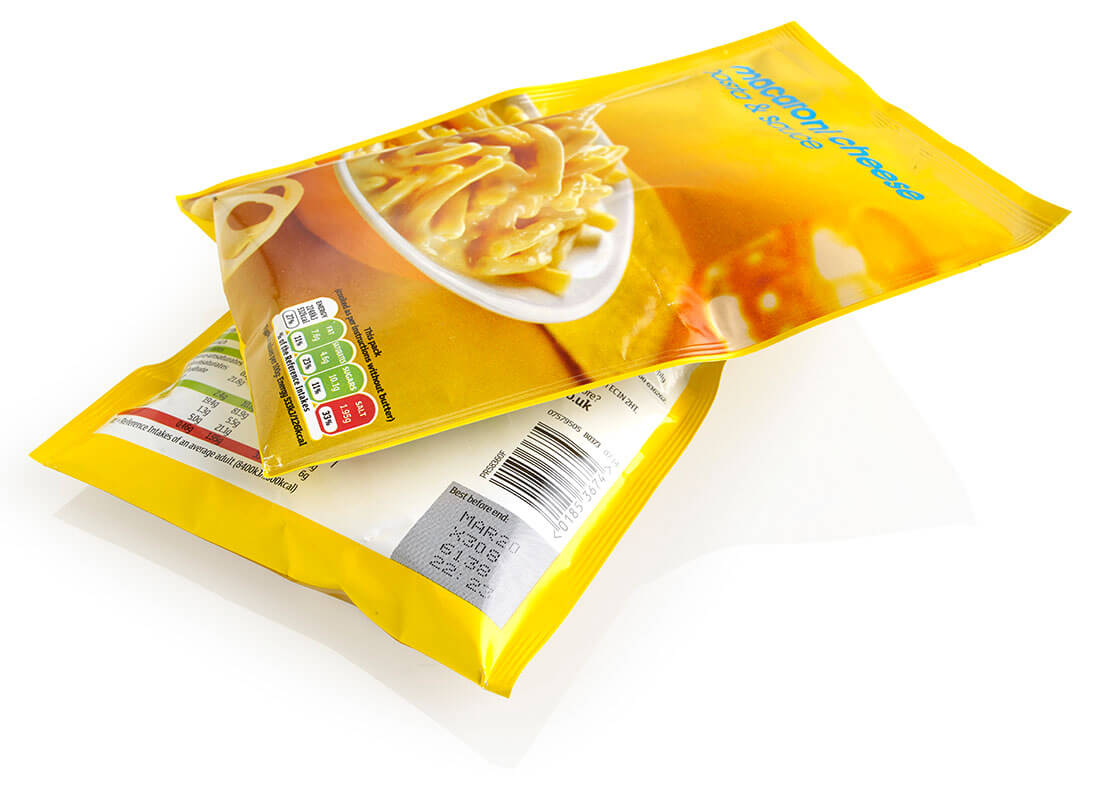

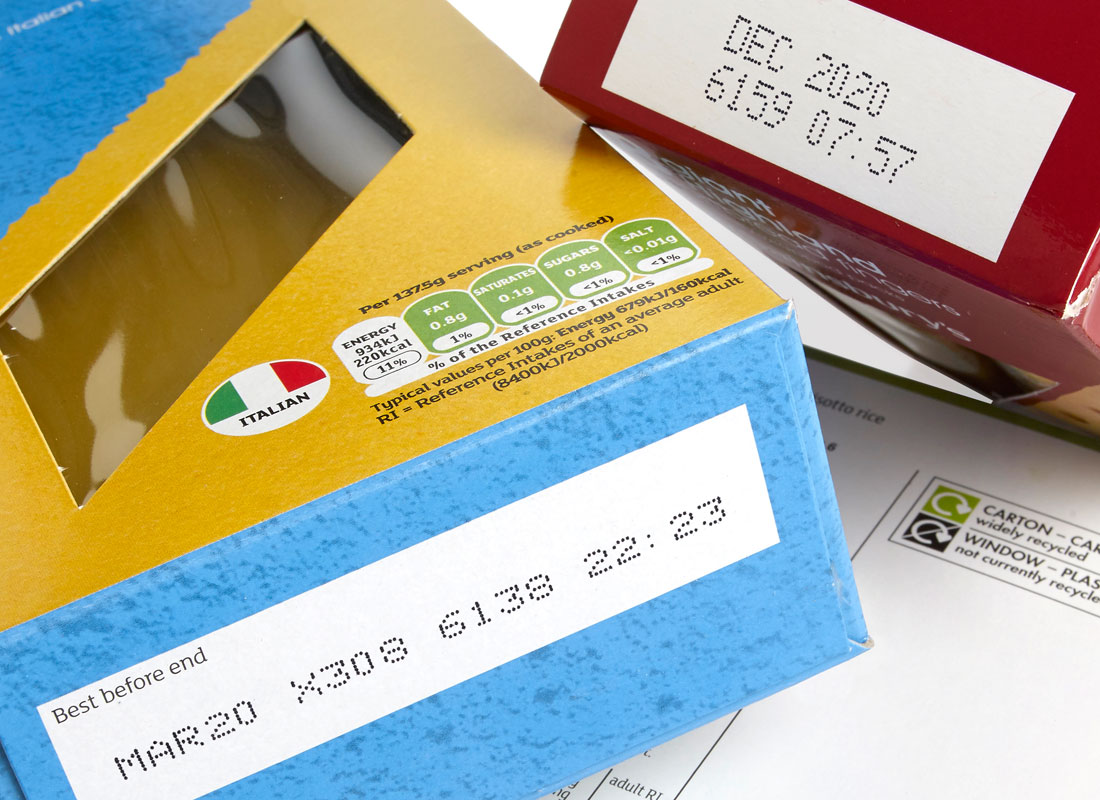

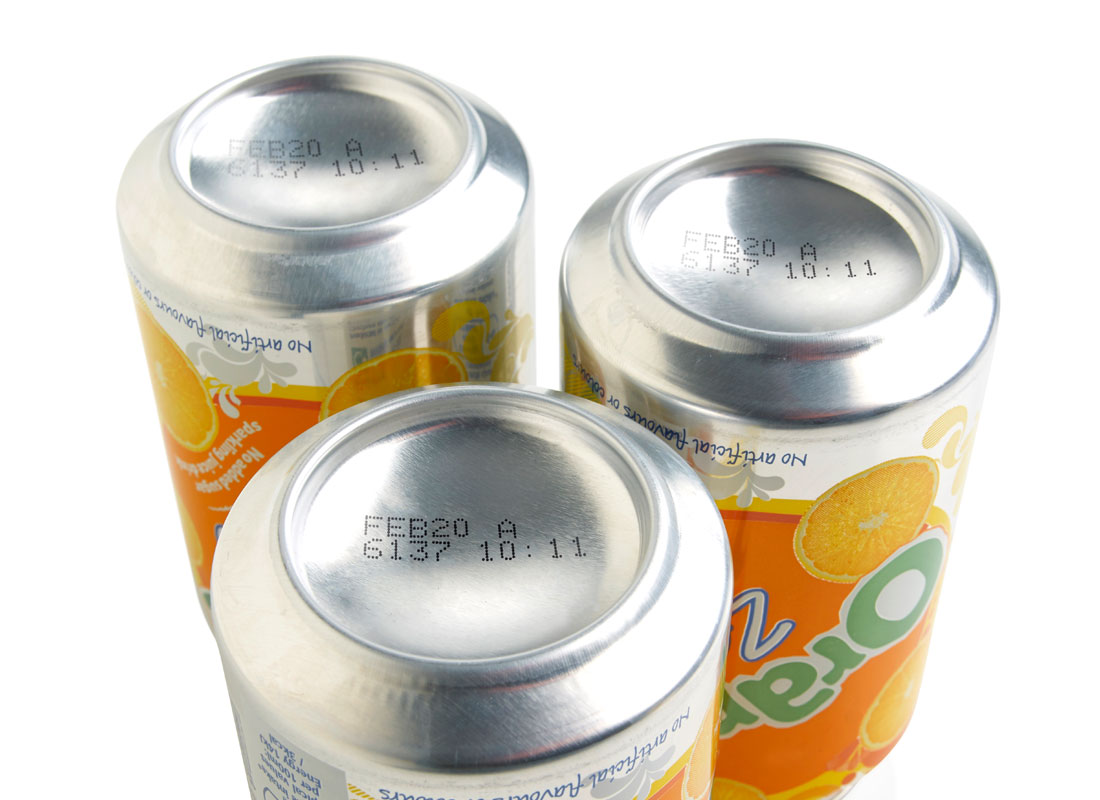

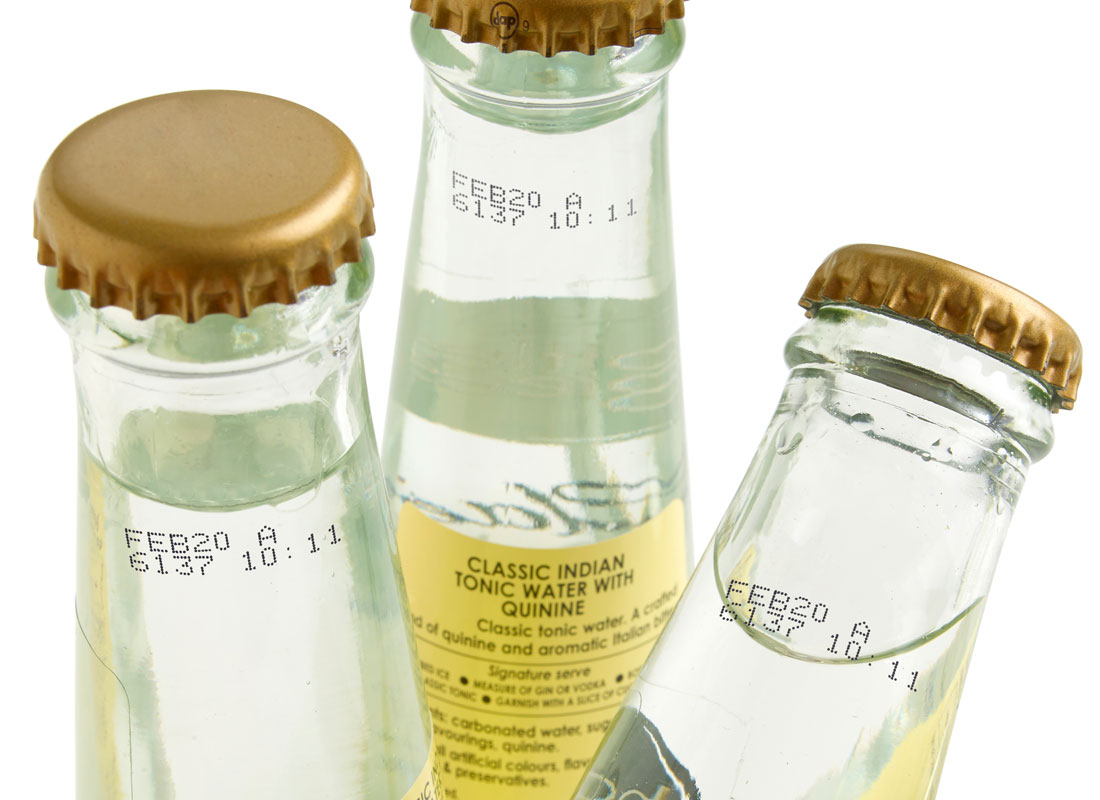

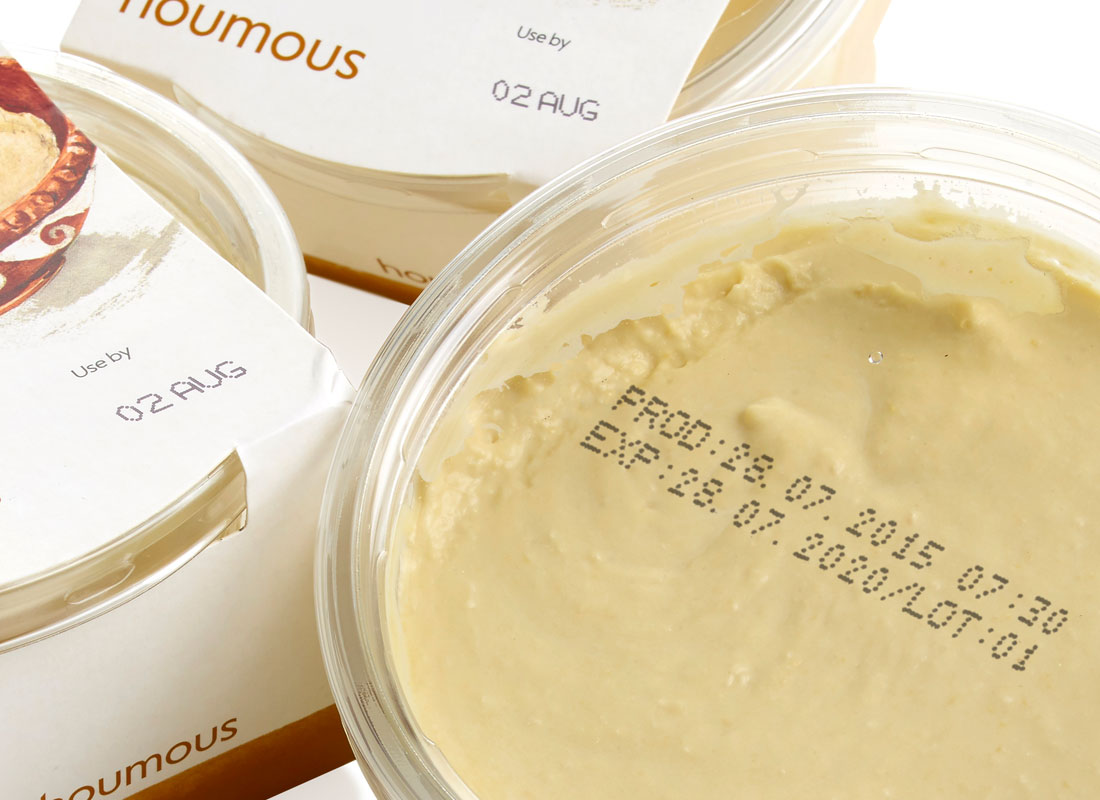

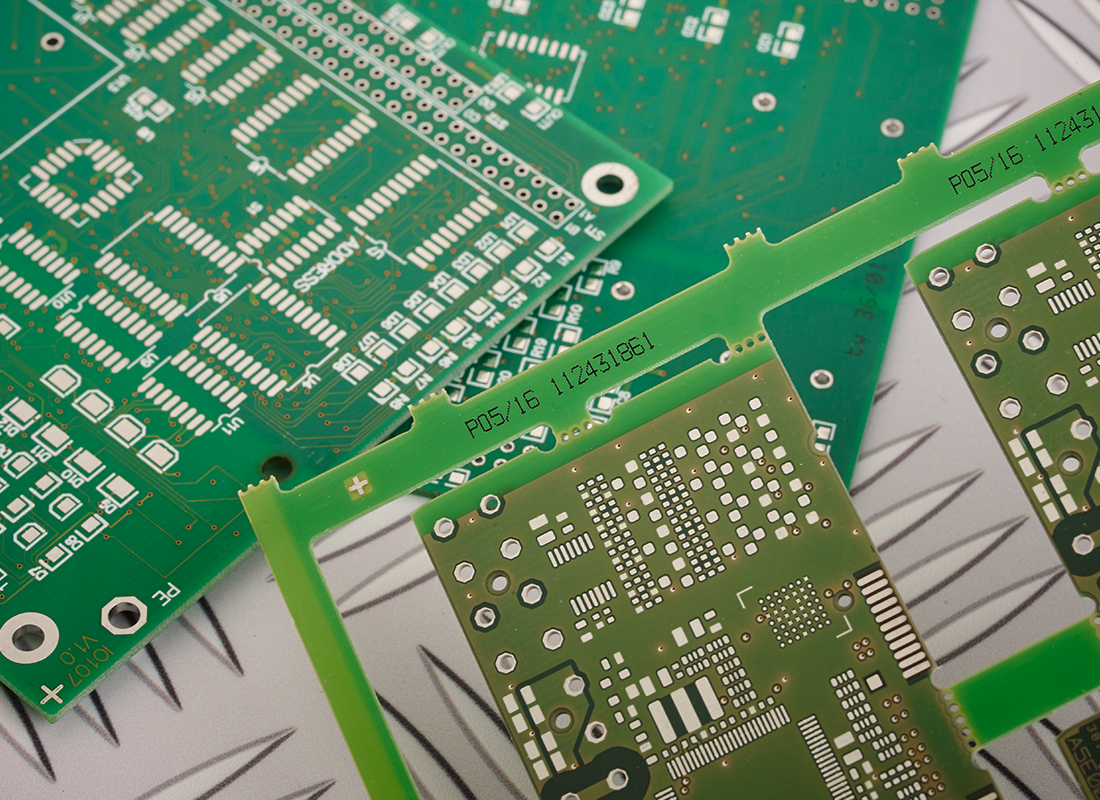

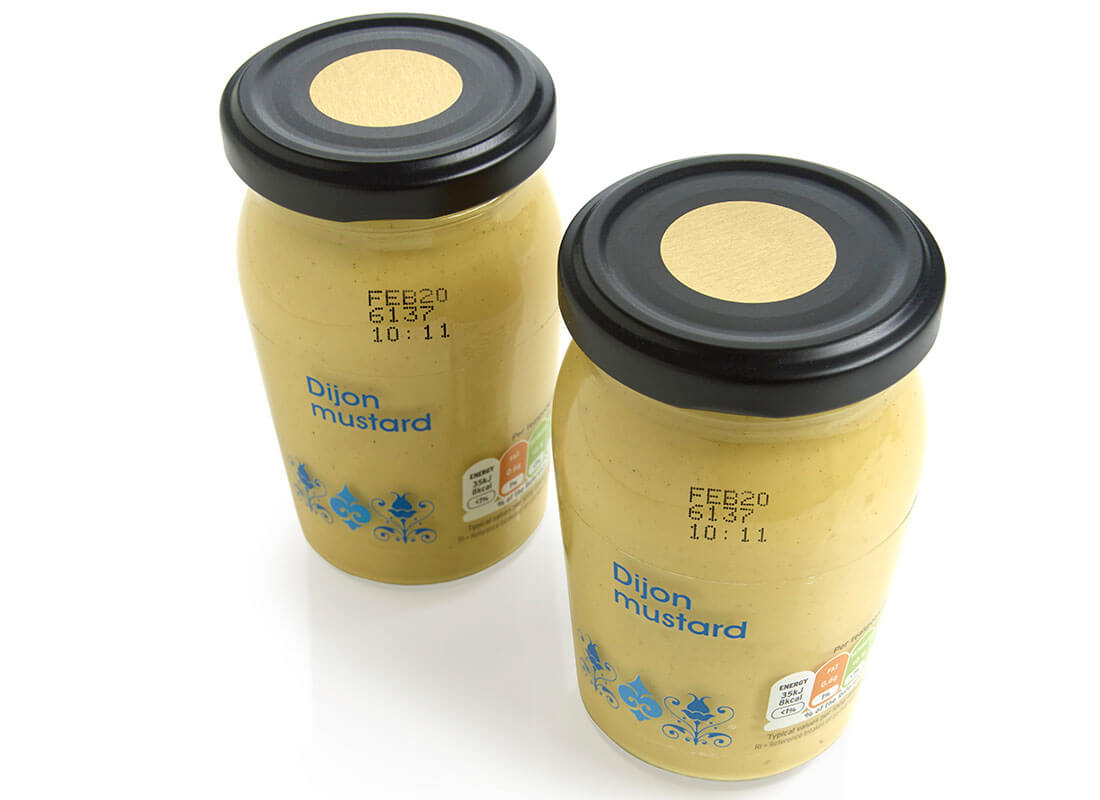

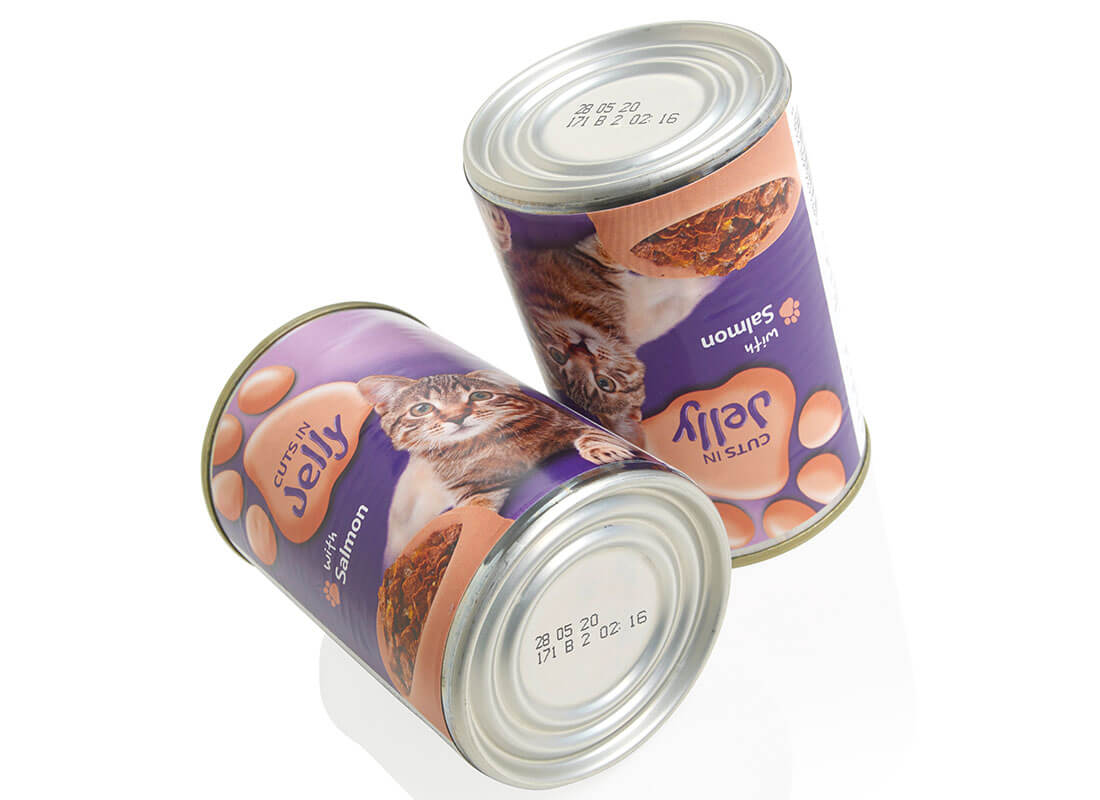

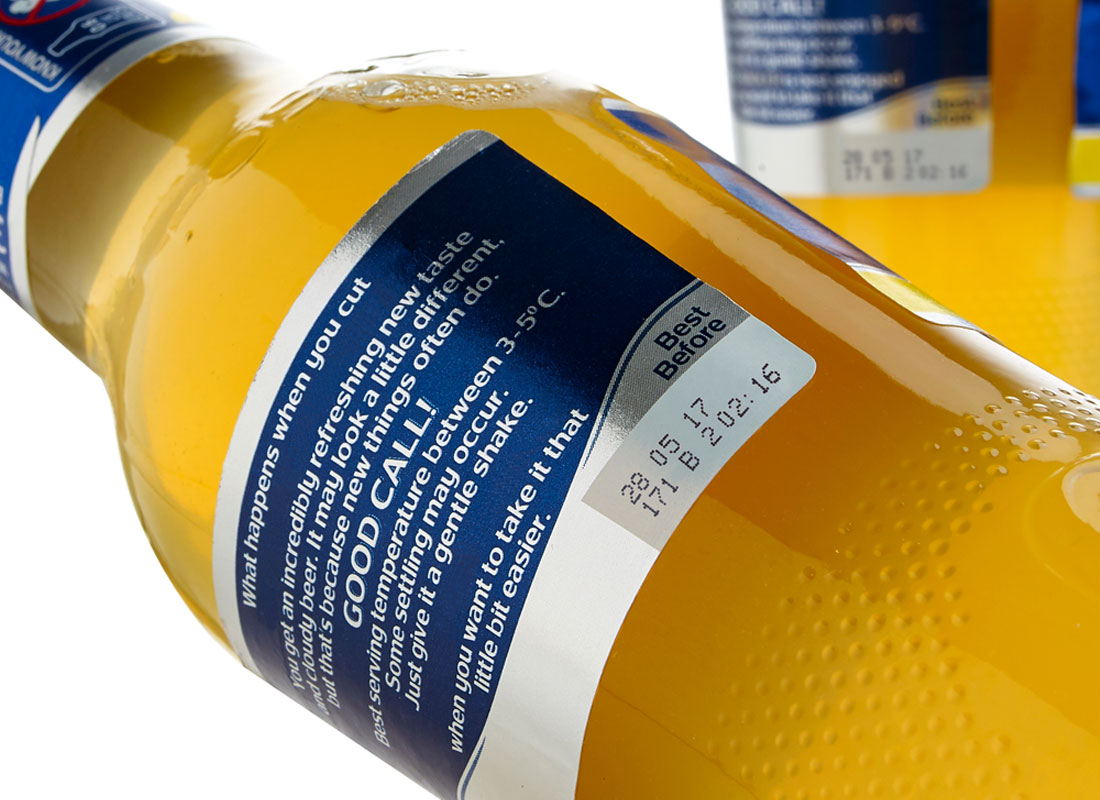

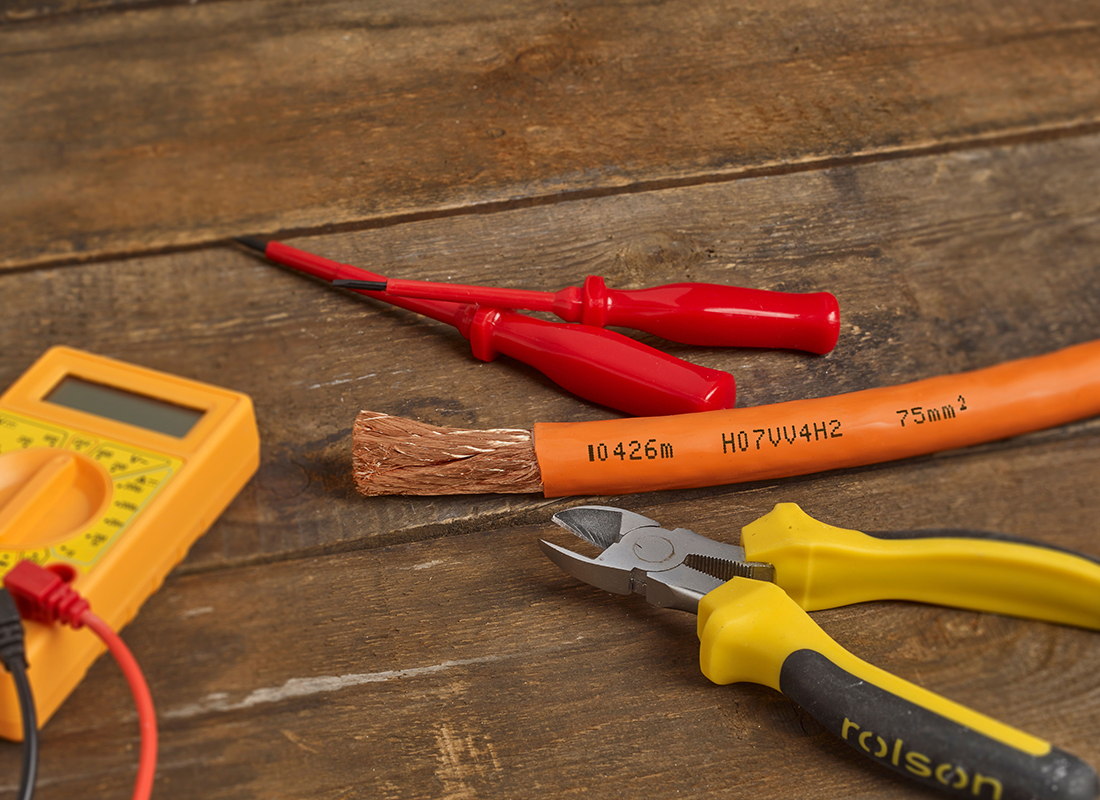

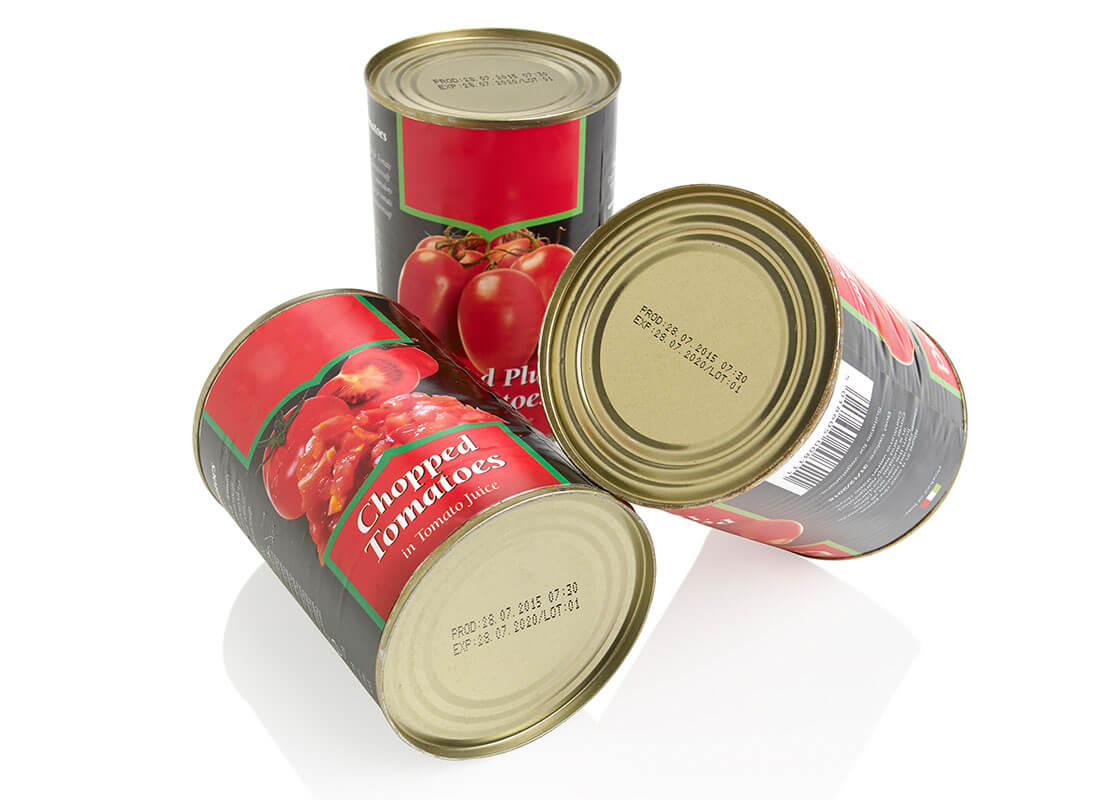

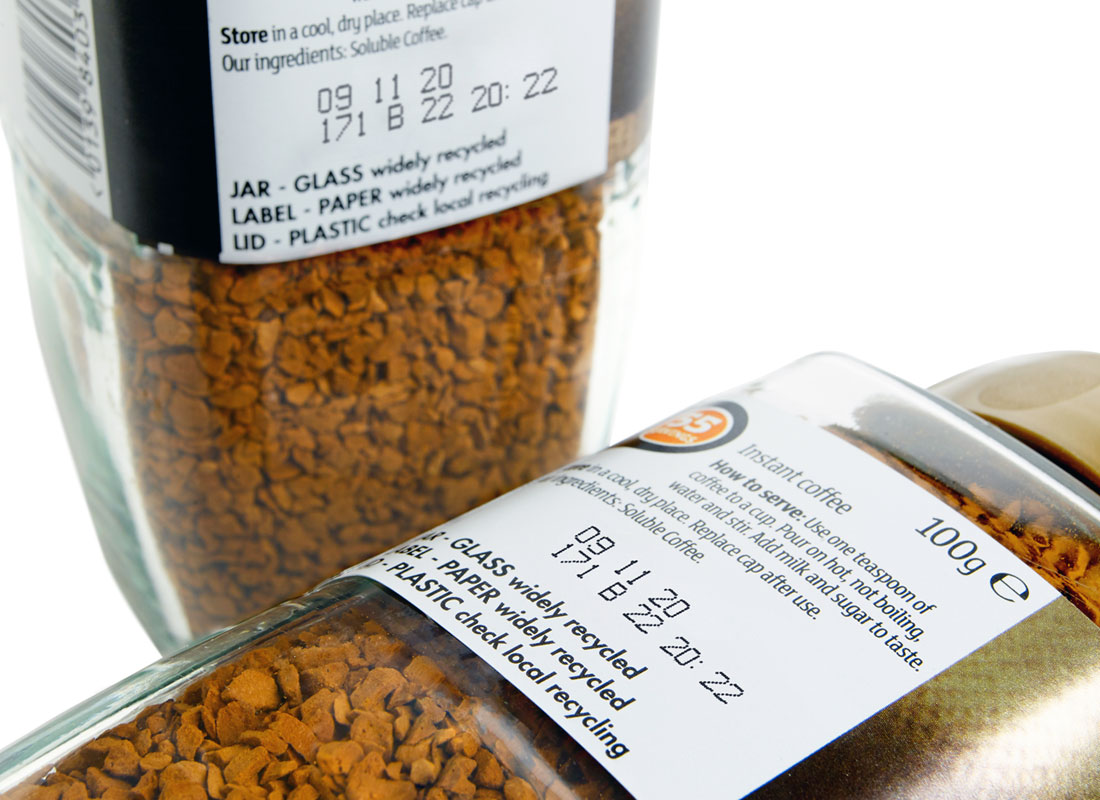

Domino Ax-Series Continuous inkjet (CIJ) printer is a non contact printing method that can utilize a range of CIJ ink to print code on almost any substrate.
Speed, accuracy and the ability to perform in tough and varied environments give our revolutionary Ax-Series printers a leading edge.
Our new generation of ink drop technology gives you gains in ink usage, droplet accuracy and placement at traditional print speeds. Our revolutionary i-Pulse system allows you to rapidly print high-constrast, durable messages and multiple lines at the fastest possible speeds, while our i-Pulse inks adhere to a wide range of substrates – even after some of the toughest post-print processes.
Quite simply, Continuous Inkjet technology is by far the best option for coding application. It is fast, durable, easy to operate, simple to install and, best of all, is extremely versatile: it can print on virtually any surface.
And as we are the undisputed leaders in Continuous Inkjet coding and printers - having set the industry standard for quality, reliability and versatility for over 30 years - we can provide a printing solution that's exactly right for your needs.

SafeGuard, featuring Domino Cloud are the service and remote support packages designed to help you maximise line efficiency whilst you focus on your total production. The Domino Cloud features are available to all i-Techx printers, which include helpdesk support through remote diagnostics, remote printer performance overviews via the Domino Cloud dashboard and pro-active service and support through remote monitoring by the Domino helpdesk.
Relax-Lite is our finance package and all our Relax Lite contracts contain SafeGuard, which covers your service and support needs.
