Large Character Inkjet Printers

High-resolution inkjet printing for secondary packaging, shelf-ready packaging and construction materials

Cx-Series Family
Cx150i-Image-Gallery-2

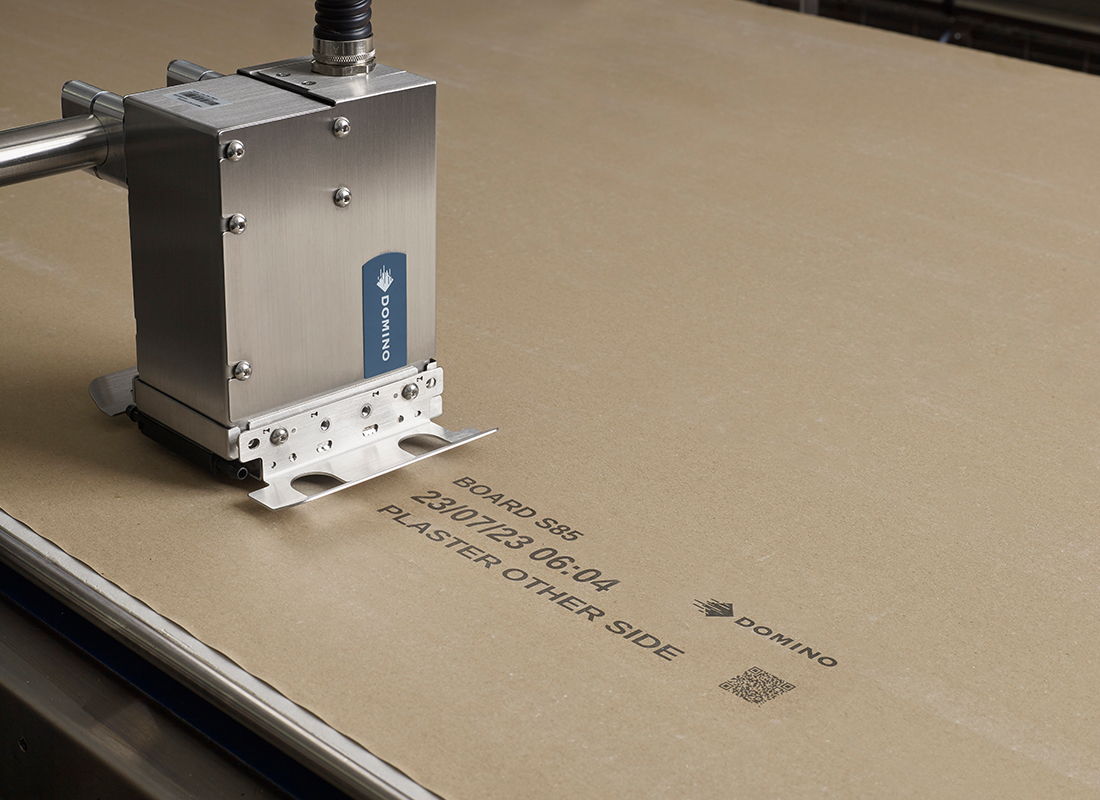

Cx350i Remote Head printing on plasterboard

Unlock the power of high resolution inkjet printing with the Cx-Series from Domino

Powered by the latest Piezo Inkjet (PIJ) technology, the Cx-Series range supports compliance to GS1 standards, and the move to large, more complex 2D machine-readable code formats. These include QR codes powered by GS1, supporting coding needs for those moving towards smarter packaging.

PIJ is a drop on demand (DOD) technology, meaning that no ink or other materials are consumed by the printer when it’s not printing. Coupled with a unique combination of settings relating to ink usage, it is designed to support your business goals relating to running costs, productivity and sustainability. Printing with the Domino Cx-Series can help you tackle some of your environmental challenges through:

  • Non-toxic, non-hazardous vegetable oil-based inks
  • UV-curable inks, with low organic compound (VOC) content
  • Flexible ink usage settings
  • No label waste
  • No factory air is needed

Meet the Cx-Series

Feature comparison
slider-left-arrow

Cx150i

High-resolution UV-cure inkjet printer for printing large-sized codes on non-porous surfaces

Cx350i

Large Character Inkjet Printer for Printing on Boxes and Construction Materials

slider-right-arrow
High-resolution, non-contact, piezo inkjet printing
Text, barcodes and graphics coding
Service-free

Show More

Available ink choices

Black, UV-cure ink for varnished boxes and general-purpose, non-porous & porous substrates. Food packaging compliant ink available.

Black, blue, red and green vegetable oil-based inks for porous substrates. Food packaging compliant.

Print height per printhead

32.5mm or 65mm

65mm

Max. number of printheads

1

4

Max. print height (with stitching)

32.5mm or 65mm

260mm

Print resolution

up to 600dpi

up to 300dpi

Distance to bottom nozzle

Cx1-PH 32 A: 23.3mm
Cx1-PH 65 A: 32.7mm

36.5mm

Substrate

Non-porous and porous substrates

Standard: Porous, uncoated boxes, corrugate and paper
Industrial: Porous building materials, including plasterboard/drywall

User interface

7" or 10" touchscreen interface

10" touchscreen interface

Software

QuickStep 3

QuickStep 3

Dimensions (Inkbase)

276mm (H) x 167mm (W) x 231mm (D)

490mm (H) x 330mm (W) x 234mm (D)

Dimensions (Printhead)

Cx1-PH 32 A: 136.4mm (H) x 61mm (W) x 212.6mm (D)

Cx1-PH 65 A: 136.4mm (H) x 61mm (W) x 223.8mm (D)

190mm (H) x 113mm (W) x 312mm (D) (standard head)

Our services to maximise your production efficiency

Operational Support

With a global presence Domino offer both a high-quality local on-site Support and rapid remote guidance. Together with flexible Financial Services and superior Training Services, you can achieve the best from your investment.

Automatic Code Inspection

Ensure every code that leaves your factory is present and correct, and free up operator time. With the R-Series, Domino’s range of vision control systems, you can automate your code inspection to validate code presence, placement, and readability.

Smart Production

Gain operational insight by connecting your printer to Domino Cloud. Obtain production analytics dashboards and receive system error alerts. Domino Cloud provides you with the information you need to run your operations more efficiently.

Automation

Manage your product codes from a central location and streamline product changeovers. Domino Automation uses standard communication protocols and can be integrated into existing ERP systems.
