Thermal Inkjet Printing

Increase uptime with our easy to use, high-resolution TIJ printers

Get in touch

Feature comparison

Text, barcodes and graphic coding
High-speed serialisation
Max print height 12.7mm 25.4mm 50.8mm 50.8mm
Line speed For constant line speed only, max 180m/min For varying and constant line speeds, max 300m/min For varying and constant line speeds, max 300m/min For varying and constant line speeds, max 300m/min
Print heads per controller 1 embedded print head up to 2 print heads for increased message height or individual printing on 2 different print positions up to 4 print heads for increased message height or individual printing on up to 4 different print positions up to 4 print heads for increased message height or individual printing on up to 4 different print positions
Controller dimensions 107.5mm x 74.5mm x 83mm Weight: 450g 75mm x 224mm x 156.5mm Weight: 1.55kg 123.9mm x 322.4mm x 250.7mm Weight: 6.4kg 64mm x 200mm x159.2mm Weight: 0.692kg
Print head dimensions Embedded Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg Height 152mm x Width 50.9mm x Depth: 8.5mm Weight: 0.22kg
User interface 2,8” colour display, data entry with (1) Android based application (2) keyboard or (3) PC application QuickStep via 7" touch screen or customer HMI QuickStep via 10" touch screen or customer HMI QuickStep via customer HMI
Domino Cloud for remote monitoring & diagnostics
Inks for porous and non-porous materials
Communication Bluetooth, USB Ethernet / Dynamark protocol, EDC (serial, TCP, USB) Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: EtherCAT protocol
  View View View View

Trusted thermal inkjet (TIJ) printing solutions

Gx-Series thermal inkjet printing solutions are versatile, easy to integrate, easy to operate - the perfect fit on many printing applications and substrates. With the latest networking technology and producing graphic code quality, the Gx-Series TIJ printers are ideal not only for batch and date coding but also for complex code formats, check weighing and track & trace applications across FMCG industries.

The new range, with the exception of the G20i, is fully compatible with Industry 4.0 standards using the Domino Cloud. Domino Cloud allows remote capability, providing the data and tools to ensure printing is a contributor to better packaging and processing systems management.

If you are looking for a coding solution that is designed for high-resolution printing at high line speeds with complete reliability Gx-Series TIJ printers can meet your needs.

Clean. Clear. Coding.

  • Graphic printing quality, on paper, card, plastic, metal and many other materials
  • Flexible label design: text, counters, clocks, graphics, logos, barcodes can all be included on the same label
  • Grade A code readability (ISO 15415) using Domino's inks on high-density DataMatrix codes



Fast moving consumer goods

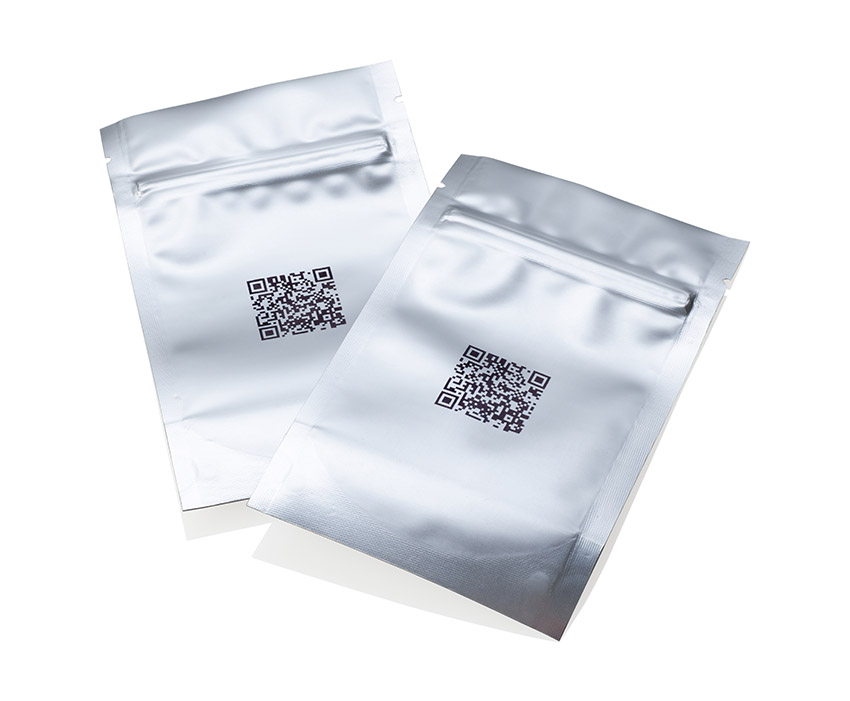

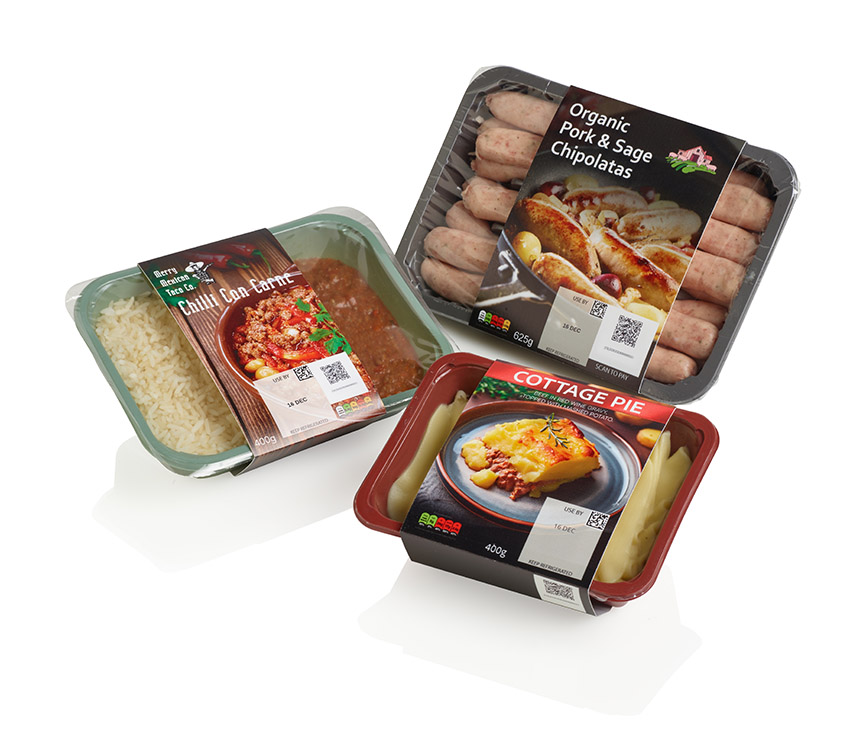

For the variety of coding requirements within the FMCG sectors, Domino has developed an ink range that is suitable for all packaging levels. From flexible films to porous shelf-ready packaging and shipping boxes.

Life sciences

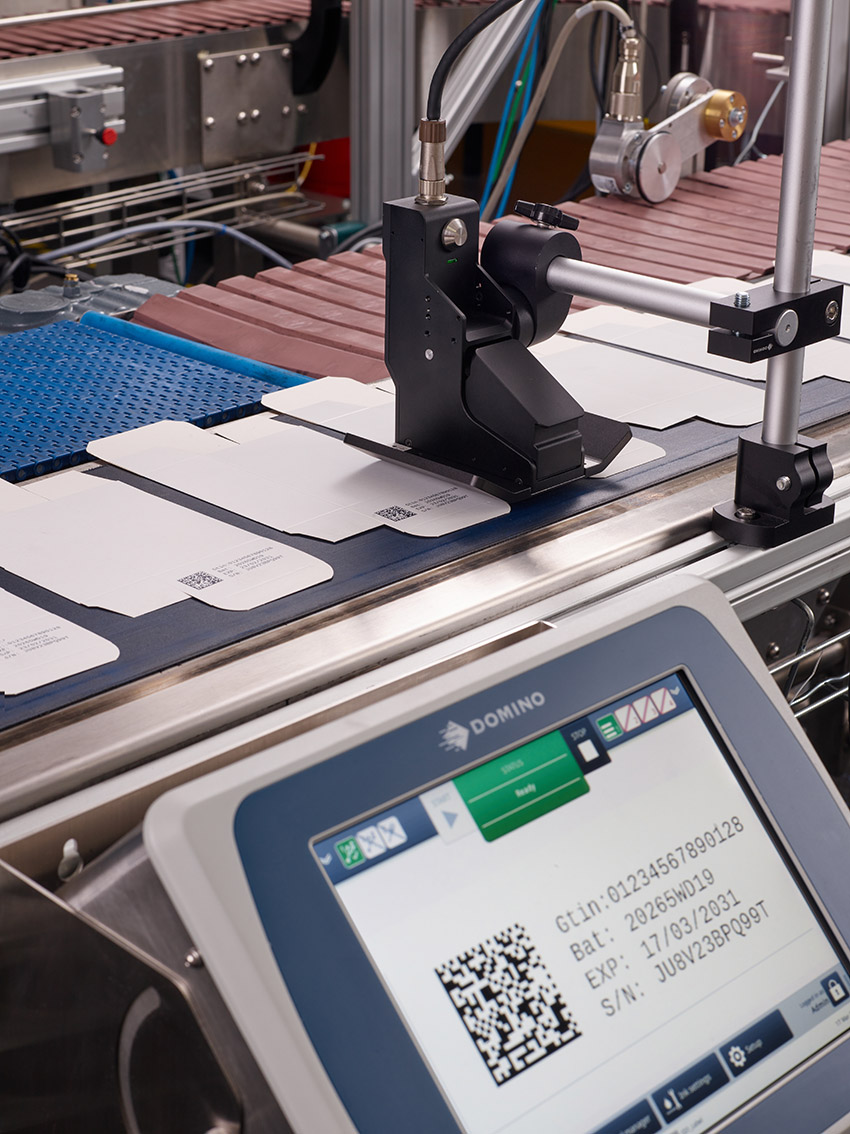

Legislative requirements call for unique item-level identification. Gx-Series printers ensure coding in compliance with pharmaceutical regulations (e.g. EU FMD, US DQSA) according to GS1 standards and can be included in a 21 CFR Part 11 validated system.

Electronics and industrial

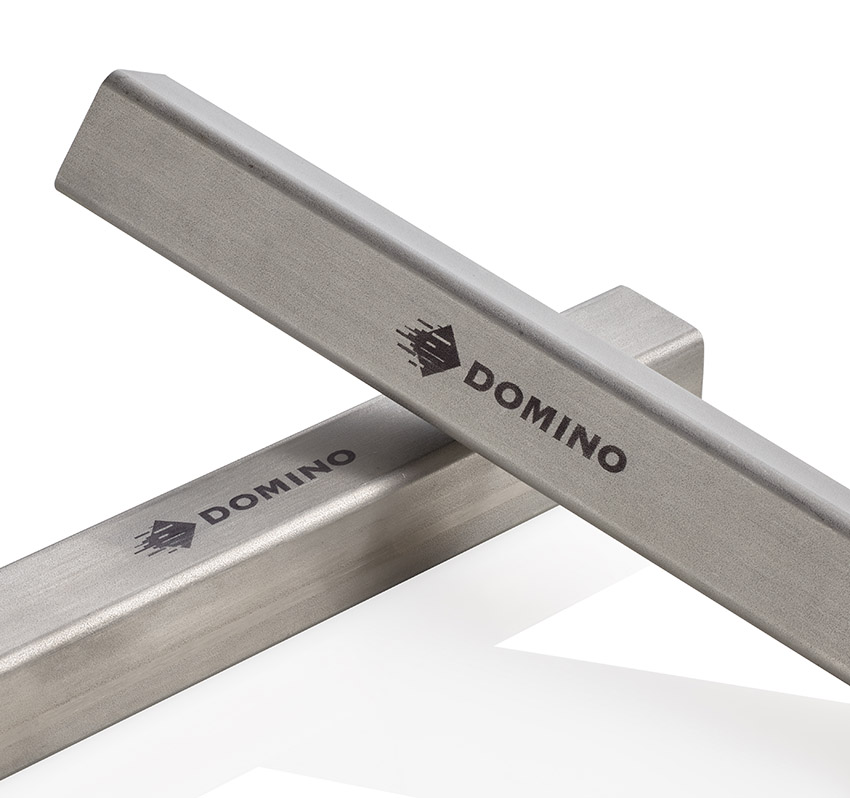

Gx-Series prints lasting, rub and scratch resistant codes, logos and graphics on electronic components, metal, aluminium or PCBs. Rapid dry times and good adhesion deliver optimum performance on fast-paced production lines.
