Case Labelling

Level up your labelling. Easy to integrate. Easy to use. Easy to adapt.

Get in touch

Feature comparison

Product motion Moving or Stationary Moving
Label Position Top or Bottom or Side Front or Side or Top or Rear, Front + Side or Front + Top or Front corner wrap
Product contact Yes & No (blow on capability available) Yes
Easy-change pads
Recommended label width: 4-inch printer 25-110mm 25-110mm
Recommended label width: 6-inch printer 25-150mm 25-150mm
Distance to product Up to 560mm Up to 360mm
Max print speed: 4-inch printer 400mm/s 400mm/s
Max print speed: 6-inch printer 250mm/s 250mm/s
Communication 4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B 4x Ethernet, TCP/IP, 2x USB-A, 1x USB-B
I/Os (configurable) 12 inputs and 12 outputs 12 inputs and 12 outputs
  View View
Sorry, our comparison tool isn't available on small screens. However, you can use the links below to see each of the products.

Do you want to reduce human errors and streamline your labelling process?

Mx-Series ensures you are equipped with an automated system that prints and applies labels accurately and consistently, reducing the risks of human errors. This is crucial in industries where precise labelling with dynamic or variable data is essential for product tracking, compliance, and quality control.

Intelligently simple to integrate into your production line, our range of industrial print and apply labelling systems are reliable, flexible, and robust. These systems can be configured for a wide range of applications, ensuring the ability to deploy global barcode standards for products and packaging. Whether applying a label on the front of individual products, on the top of a tray, or over the corner of a bundle package, the same fundamental requirements for traceability, legibility, and clarity apply.

Mx Series samples


The easy and safe choice for your labelling

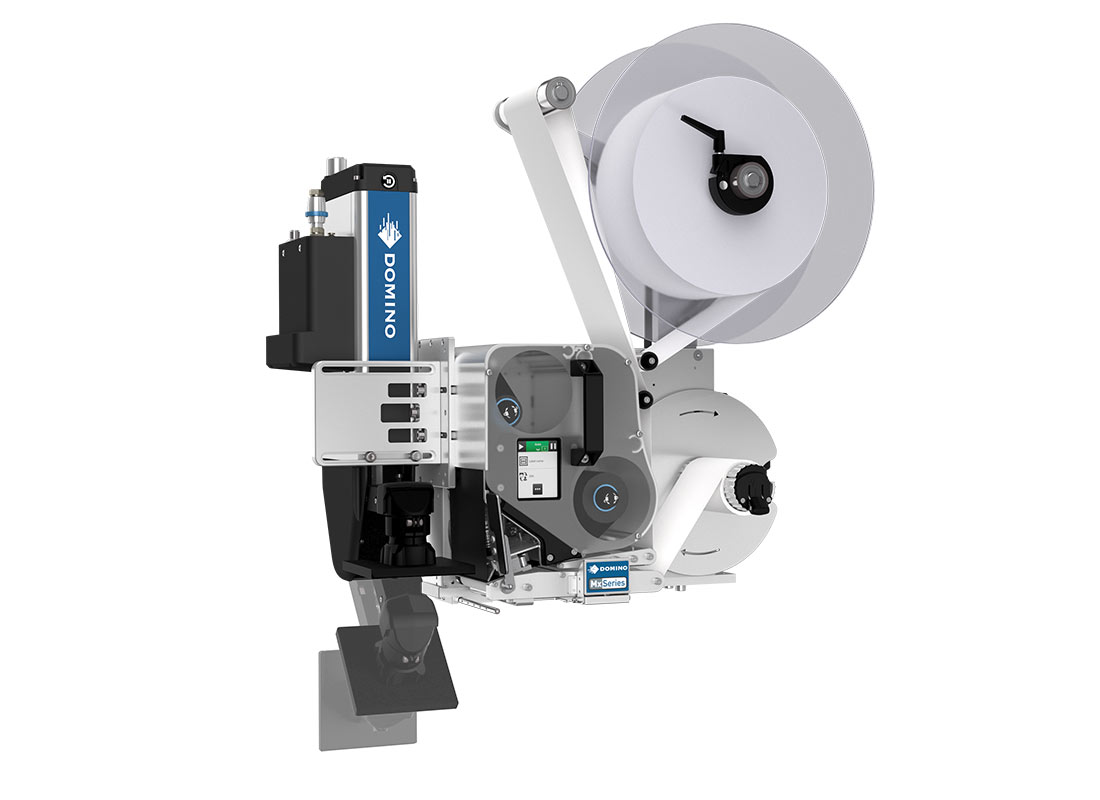

The Mx-Series Print and Apply systems offer flexibility through their modular concept and are equipped with a variety of applicators to meet your labeling requirements. Teamed with a robust printer, they ensure clear codes on accurately placed labels where they are needed. Our labelling technology uses 600 metre long label and ribbon rolls, resulting in minimal downtime for your production. The high-quality coding and labelling system, boast a resolution of 300 dpi. This is accomplished through a direct thermal/thermal transfer printer, which is available in both left-hand and right-hand variations.

Recognising that the labelling needs of many customers evolve over time, we have ensured the delivery of a system that can adapt to your changing requirements. This not only saves you on effort but also contributes to cost savings.

Across the Mx-Series labelling range, we've integrated features like Autostop and Label Check, that enhance ease and safety of operation. Alongside extensive options for customising your labelling equipment and connectivity options, you have a reliable solution that contributes to increased uptime, productivity, supporting your business to meet your sustainability goals.
